Rahmen
C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Remote
Bosch System Control, incl. Mini Remote
Akku
Bosch PowerTube 750
Ladegerät
Bosch 4A
Federgabel

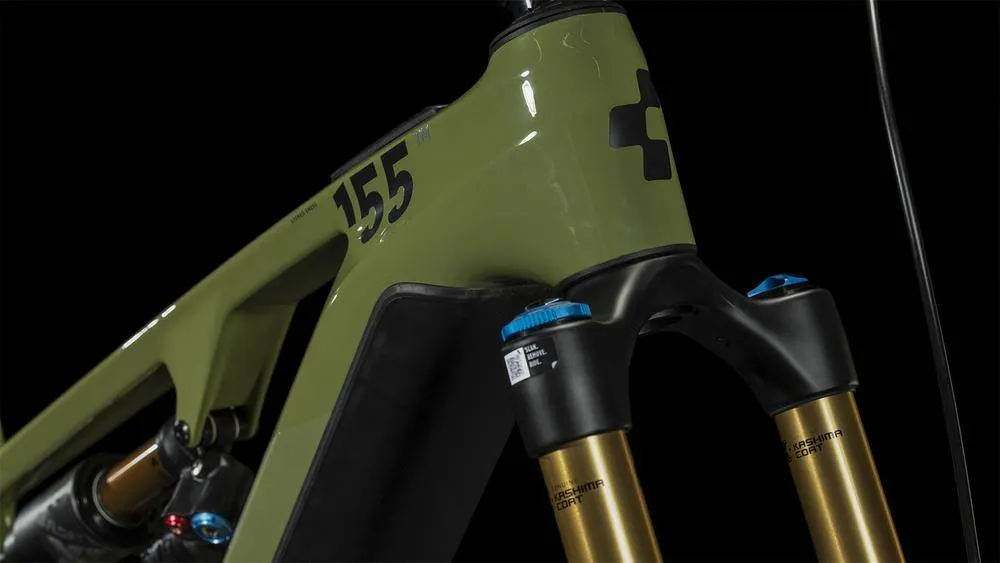

Fox 38 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 160mm, Kashima Coated
Dämpfer

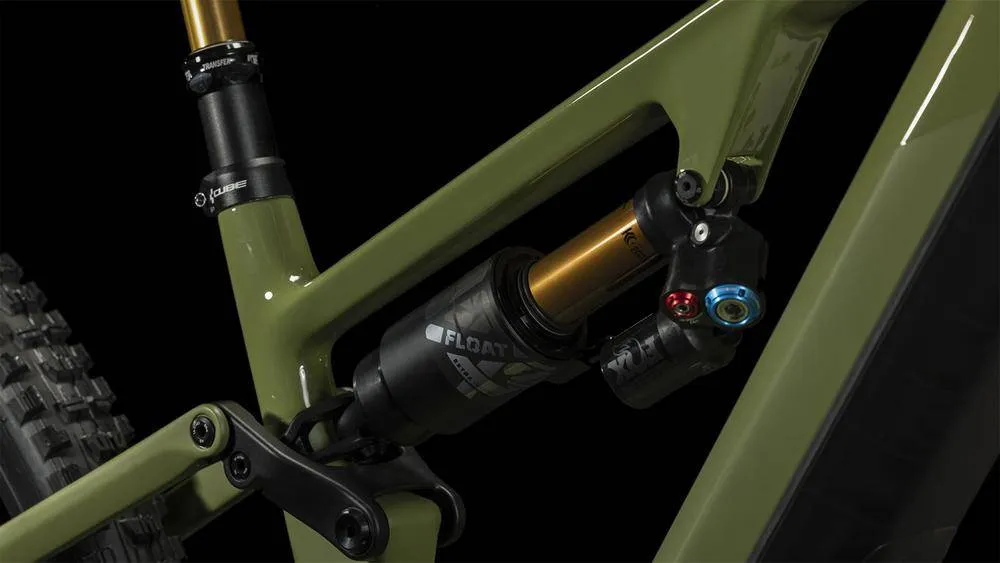

Fox Float X2 Factory, 230x60mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
Dämpfer Hardware Front: 30x8mm, Rear: DU-Bushing 12,7mm
Bremsanlage
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Schaltwerk
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Schalthebel
Shimano XT SL-M8100-IR, Direct Attach
Kurbelgarnitur

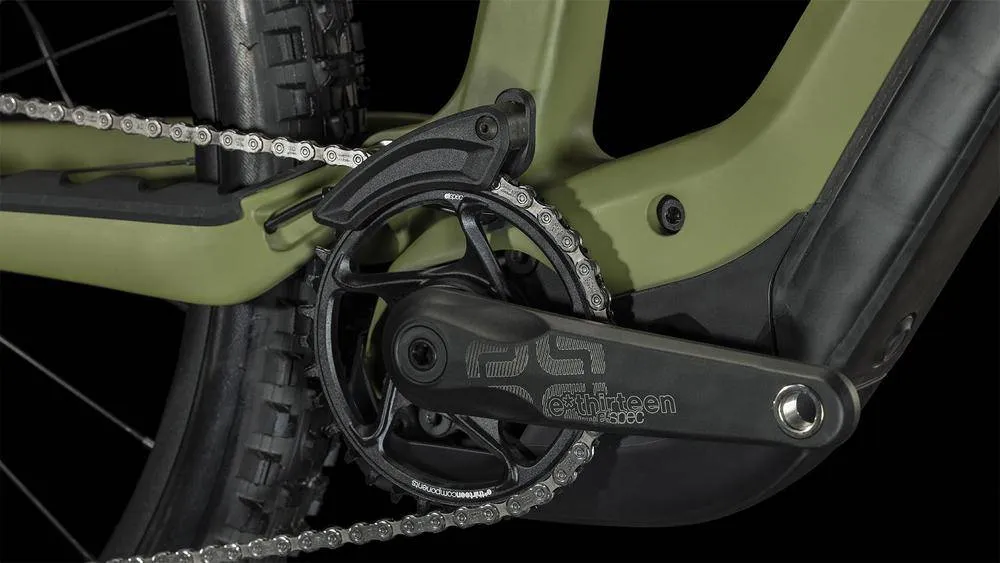

e*thirteen Plus Crank, 34T, 165mm
Kassette
Shimano XT CS-M8100, 10-51T
Kette
Shimano CN-M8100
Kettenführung
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Steuersatz
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Vorbau
Race Face Turbine R 35
Lenker
Race Face Turbine R 35, 800mm
Griffe
ACID Disrupt, Soft Compound
Laufradsatz
Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Vorderreifen
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Hinterreifen
Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
Sattel
Natural Fit Venec
Sattelstütze
Fox Transfer Factory 31.6mm, Kashima Coated
Sattelklemme
CUBE Screwlock, 34.9mm
Akku-Schloss
Abus Art.Nr. 64293
Farbe
olive´n´chrome
Gewicht
22,9 kg
Max. Systemgewicht 135 kg
