Rahmen
‍C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced
Internal Cable Routing‍

Motor
‍Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Remote Bosch System Control, incl. Mini Remote‍

Akku
‍Bosch PowerTube 750‍

Ladegerät
Bosch 4A‍

Federgabel
‍Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 160mm, Kashima Coated‍

Dämpfer
‍Fox Float X Factory, 230x60mm, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Dämpfer Hardware Front: 30x8mm, Rear: DU-Bushing 12,7mm‍

Bremsanlage
‍Magura MT7, Hydr. Disc Brake (203/203)‍

Schaltwerk
‍Sram XX1 Eagle AXS™, 12-Speed‍

Schalthebel
‍Sram Eagle AXS™ Controller‍

Kurbelgarnitur
‍e*thirteen TRSr Carbon Crank, 34T, 165mm‍

Kassette
‍Sram XG-1299 Eagle™ Rainbow, 10-52T‍

Kette
‍Sram PC-XX1 Eagle™ Rainbow‍

Kettenführung
‍Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4‍

Steuersatz
‍ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment‍

Vorbau
‍Newmen Evolution SL 318.4, 31.8mm‍

Lenker
‍Newmen Advanced 318.25, Carbon, 780mm‍

Griffe
‍ACID Disrupt, Soft Compound‍

Laufradsatz
‍Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready‍

Vorderreifen
‍Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4‍

Hinterreifen
‍Schwalbe Nobby Nic, Super Trail, Addix Soft, Kevlar, 2.4‍

Sattel
‍Natural Fit Venec‍

Sattelstütze
‍Fox Transfer Factory 31.6mm, Kashima Coated‍

Sattelklemme
‍CUBE Screwlock, 34.9mm‍

Akku-Schloss
‍Abus Art.Nr. 64293‍

Farbe
‍prizmsilver´n´carbon‍

Gewicht
‍21,9 kg‍

Max. Systemgewicht 135 kg

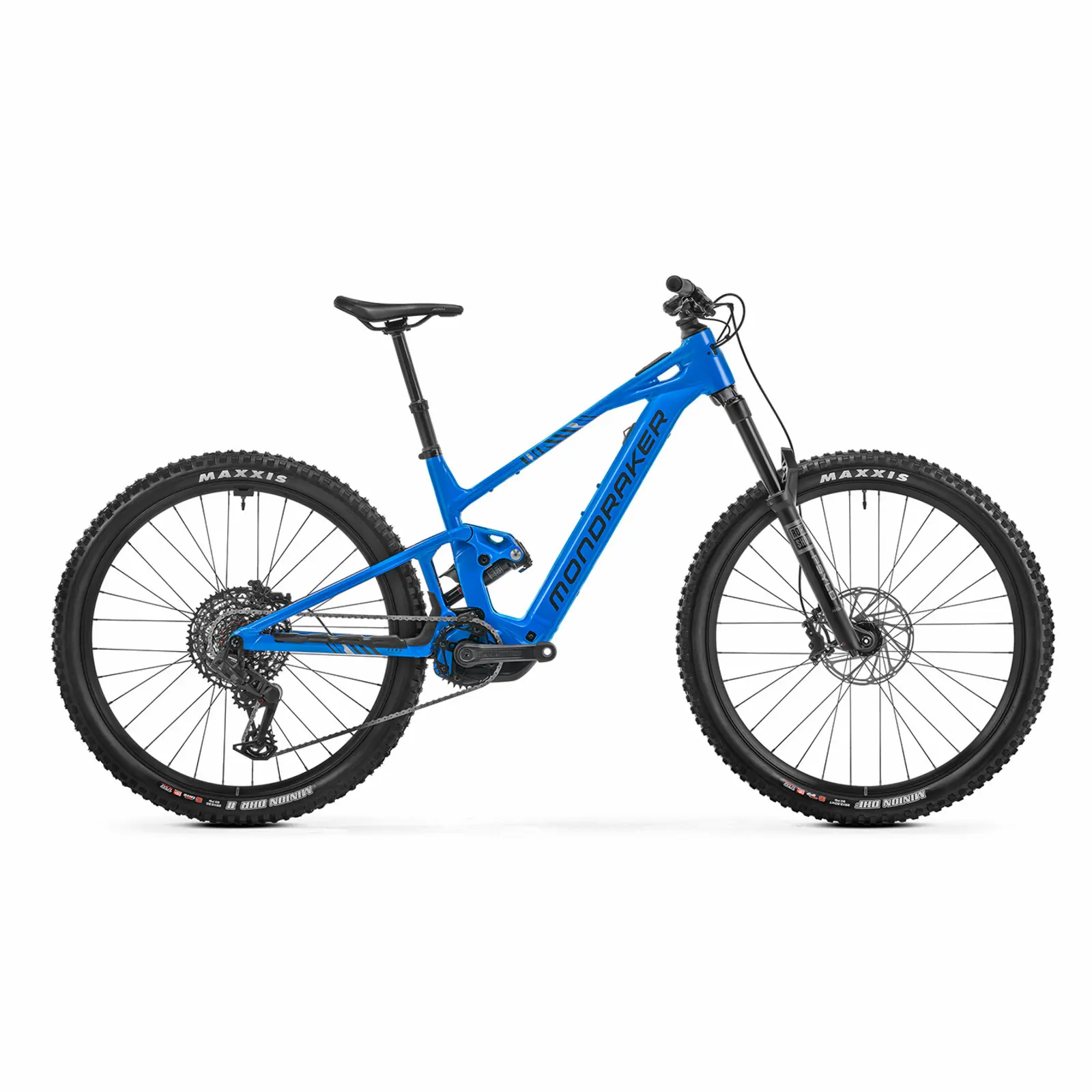

Rahmen
Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Batterie
TQ HPR-50 360Wh integrated and removable

Bremsen
Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Schalthebel
Sram Eagle AXS Pod MMX, 12s
Schaltwerk
Sram S1000 Eagle AXS T-Type, 12s
Kurbel
E.13 Helix Core E*Spec Plus, All sizes: 160mm
Kassette
Sram XS-1270, 10-52T, T-Type, 12s
Kette
Sram GX Eagle T-Type, 12s, Powerlock

Gabel
RockShox LYRIK Select Charger RC 29, 160mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload
Dämpfer
Rock Shox Super Deluxe Select, 185x55mm, Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Sattelstütze
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing,

Felgen
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Rahmen

• Rahmen C:62® Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™, 155mm travel
• Größe 29: L

Fahrwerk

• Federgabel Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, 160mm, Kashima Coated
• Dämpfer Fox Float X2 Factory, 205x60mm, High/Low Speed Rebound & Compression w/ 2-Pos. Lever, Kashima Coated
• Dämpfer Hardware Top: 54mm Trunnion Mount, Bottom: 22x8mm

Antrieb & Bremse

• Bremsanlage Sram Code Ultimate Stealth, Hydr. Disc Brake (200/180)
• Schaltwerk Sram XX1 Eagle AXS™, 12-Speed
• Schalthebel Sram Eagle AXS™ Controller
• Innenlager Sram DUB MTB, 73mm BSA
• Kurbelgarnitur Sram X01 Eagle™ Carbon 32T, Boost
• Kassette Sram XG-1299 Eagle™ Rainbow, 10-52T
• Kette Sram PC-XX1 Eagle™ Rainbow
• Kettenführung MRP 1X Chain Guide

Cockpit

• Steuersatz ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
• Lenker-/ Vorbaueinheit CUBE Stereo Carbon Cockpit System
• Griffe ACID Disrupt, Soft Compound

Laufräder

• Laufradsatz Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
• Vorderreifen Schwalbe Nobby Nic, Super Ground, Addix Soft, Kevlar, 2.4
• Hinterreifen Schwalbe Wicked Will, Super Ground, Addix Speedgrip, Kevlar, 2.4

Ausstattung

• Sattel Natural Fit Nuance SLT Carbon
• Sattelstütze Fox Transfer Factory 30.9mm, Kashima Coated
• Extras ACID Downtube Storage Bag & HUSK24 Multi Tool

Artikelinformationen

• Farbe carbon´n´black
• Gewicht 13,1 kg
• Max. Systemgewicht 115 kg

Rahmen
‍C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™‍

Federgabel
‍RockShox Recon Gold RL Air, Tapered, 15x110mm, 120mm‍

Dämpfer
‍RockShox Deluxe Select+, 190x42.5mm
Hardware Front: 26x8mm, Rear: 30x8m

‍Bremsanlage
‍Magura MT Thirty, Front/Rear 2-Piston, Hydr. Disc Brake (180/180)‍

Schaltwerk
‍Sram GX Eagle™, 12-Speed‍

Schalthebel
‍Sram GX Eagle™ Trigger‍

Innenlager
‍Sram DUB MTB, 92mm Pressfit‍

Kurbelgarnitur
‍Sram GX Eagle™ Boost DUB, 30T‍

Kassette
‍Sram XG-1275 Eagle™, 10-52T‍

Kette
‍Sram SX Eagle™‍

Steuersatz
‍ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment‍

Vorbau
‍Newmen Evolution SL 318.4, 31.8mm‍

Lenker
‍Newmen Evolution 318.20, 760mm‍

Griffe
SDG Thrice‍

Laufradsatz
‍Fulcrum Red 77, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready‍

Reifen
‍Maxxis Forekaster, EXO, Tubeless Ready, 2.35‍

Sattel
‍Natural Fit Nuance‍

Sattelstütze
‍CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm‍

Sattelklemme
‍CUBE Screwlock, 34.9mm‍

Farbe
‍liquidred´n´carbon‍

Gewicht
‍12,5 kg‍

Max. Systemgewicht 115 kg
