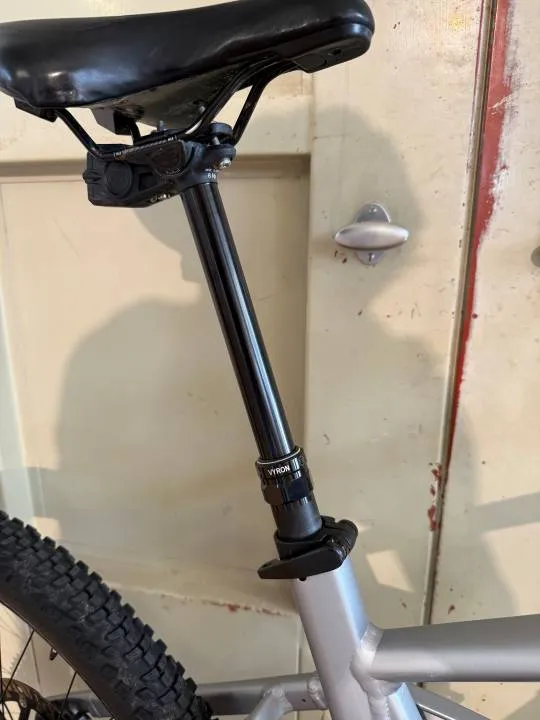

Testbike mit Vyron MDS-V.3 Sattelstütze und Licht ausgerüstet
Rahmen
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Remote
Bosch LED Remote
Akku
Bosch PowerTube 750
Display
Bosch Intuvia 100
Ladegerät
Bosch 2A
Federgabel

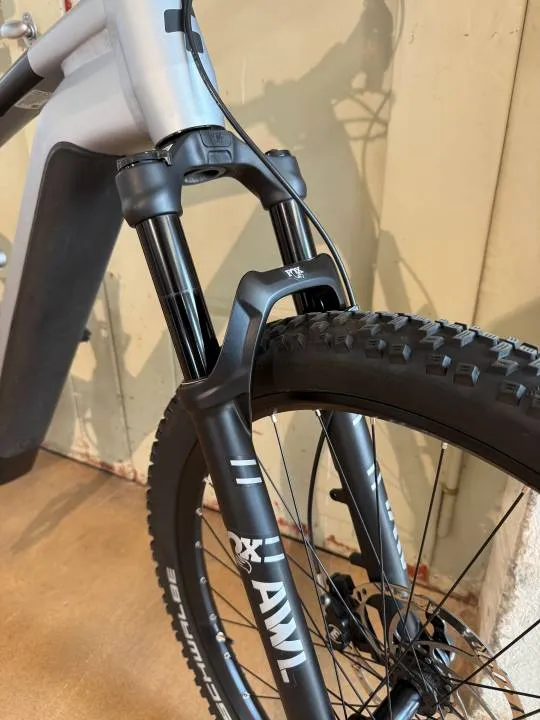

Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm
Dämpfer

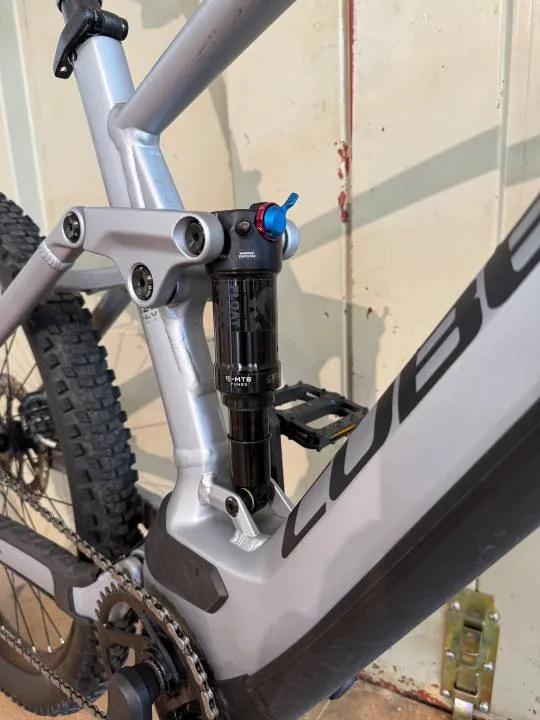

Fox Float DPS EVOL, 185x55mm (27.5: 165x45mm), Open/Medium/Firm Mode, Trunnion Mount
Hardware Top: 54mm Trunnion Mount, Bottom: 30x8mm
Bremsanlage
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Schaltwerk
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Schalthebel
Shimano Deore SL-M6100, Rapidfire-Plus
Kurbelgarnitur
ACID E-Crank, 38T, 170mm
Kassette
Shimano Deore CS-M6100, 10-51T
Kette
Shimano CN-M6100
Steuersatz
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Vorbau
CUBE Performance Stem E-MTB, 31.8mm
Lenker
Newmen Evolution SL 318.25, 760mm
Griffe
ACID Hybrid Perform
Felgen
CUBE EX30, 32H, Disc, Tubeless Ready
Vorderrad Nabe
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Hinterrad Nabe
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Reifen
Schwalbe Smart Sam, Active, 2.6
Farbe
polarsilver´n´black
Gewicht
25,6 kg
Max. Systemgewicht 160 kg
