Rahmen

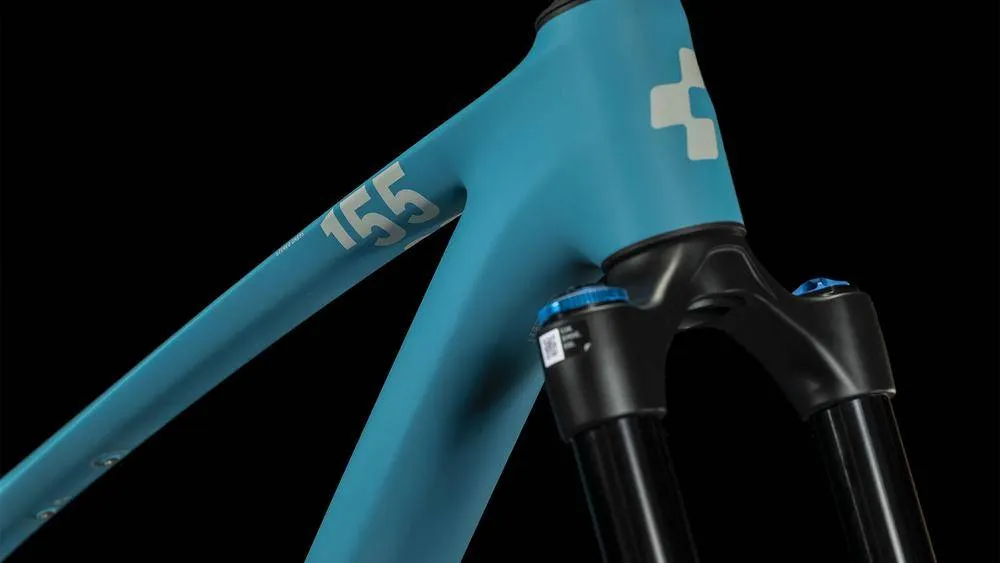

C:62® Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™, 155mm travel
Federgabel
Fox 36 Float Performance Elite FIT GRIP2, Tapered, 15x110mm, 160mm
Dämpfer

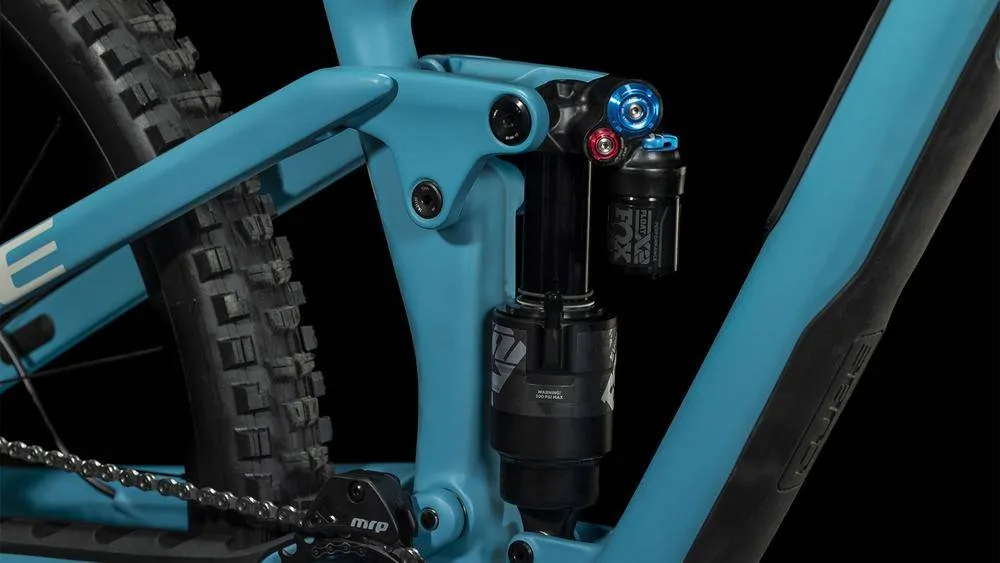

Fox Float X2, 205x60mm, Trunnion Mount, Low Speed Rebound & Compression w/ 2-Position Lever
Dämpfer Hardware Top: 54mm Trunnion Mount, Bottom: 22x8mm
Bremsanlage
Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
Schaltwerk
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Schalthebel
Shimano XT SL-M8100-IR, Direct Attach
Innenlager
Praxis M30, 73mm BSA, sealed Enduro™, Bearings
Kurbelgarnitur
Praxis Girder HD Carbon, Boost, 32T
Kassette
Shimano XT CS-M8100, 10-51T
Kette
Shimano CN-M6100
Kettenführung
MRP 1X Chain Guide
Steuersatz
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Vorbau
Race Face Turbine R 35
Lenker
Race Face Turbine R 35, 800mm
Griffe
SDG Thrice
Laufradsatz
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Vorderreifen
Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Hinterreifen
Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
Sattel
SDG Bel Air V3 Lux Alloy
Sattelstütze
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Sattelklemme
CUBE Semi-Integrated
Extras

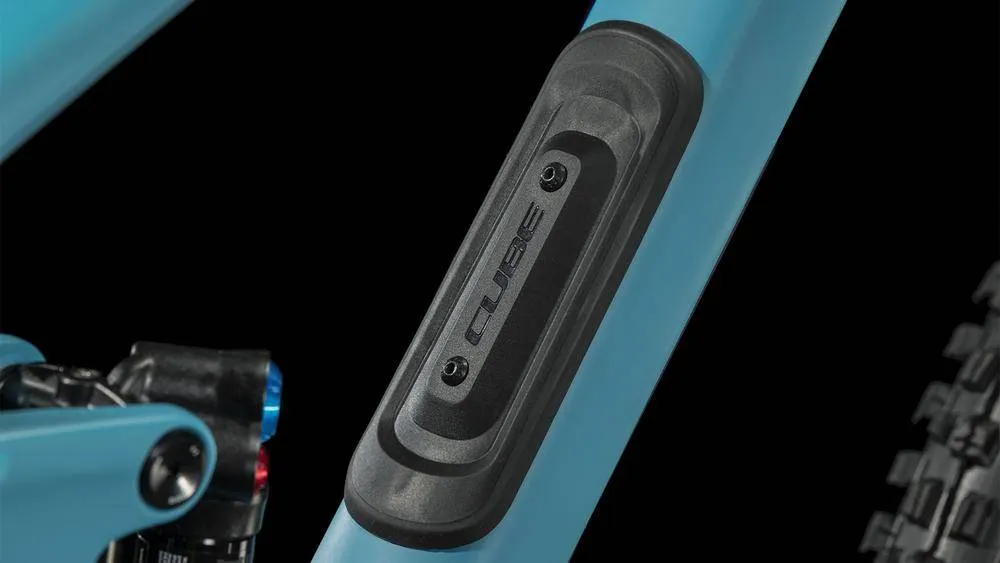

ACID Downtube Storage Bag
Farbe
bondiblue´n´grey
Gewicht
14,5 kg
Max. Systemgewicht 115 kg
